Launching Ignition IIoT Architecture

After we've made the adjustments to our ia-architectures/iiot/docker-compose.yml file (and remembered to save! 😃), we're ready to launch the solution.

Bringing up the Compose Stack

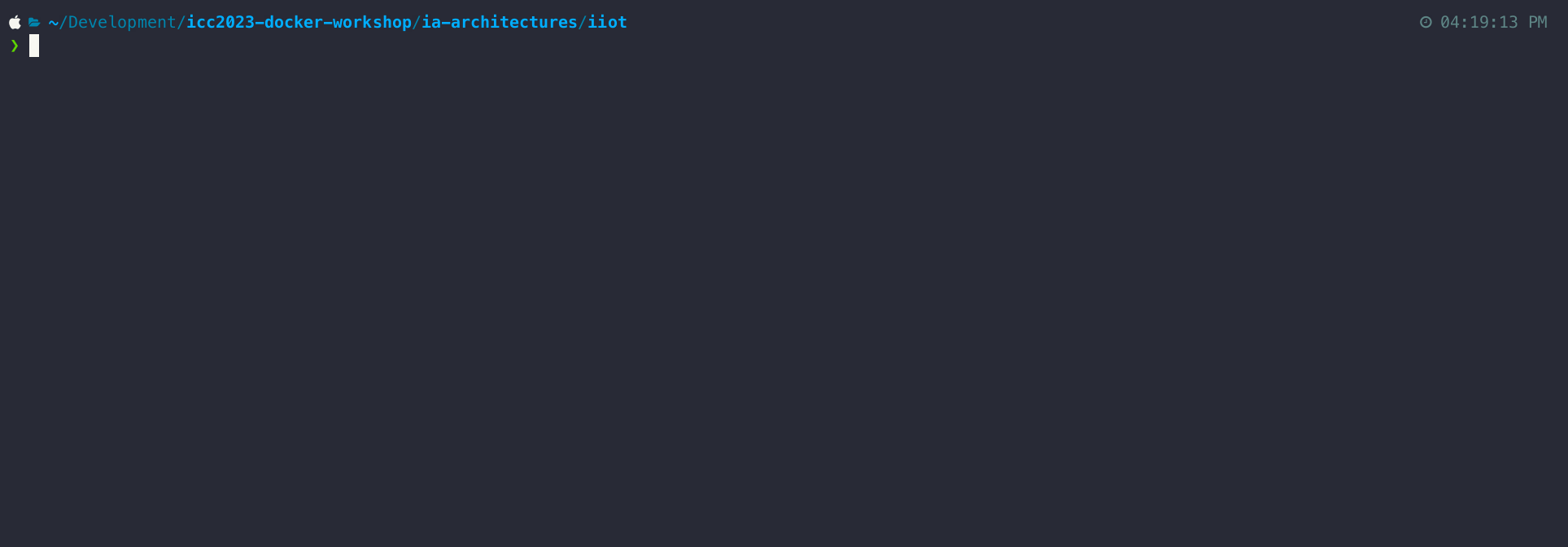

Run the following to launch the solution:

docker compose up -d

Checking the Services

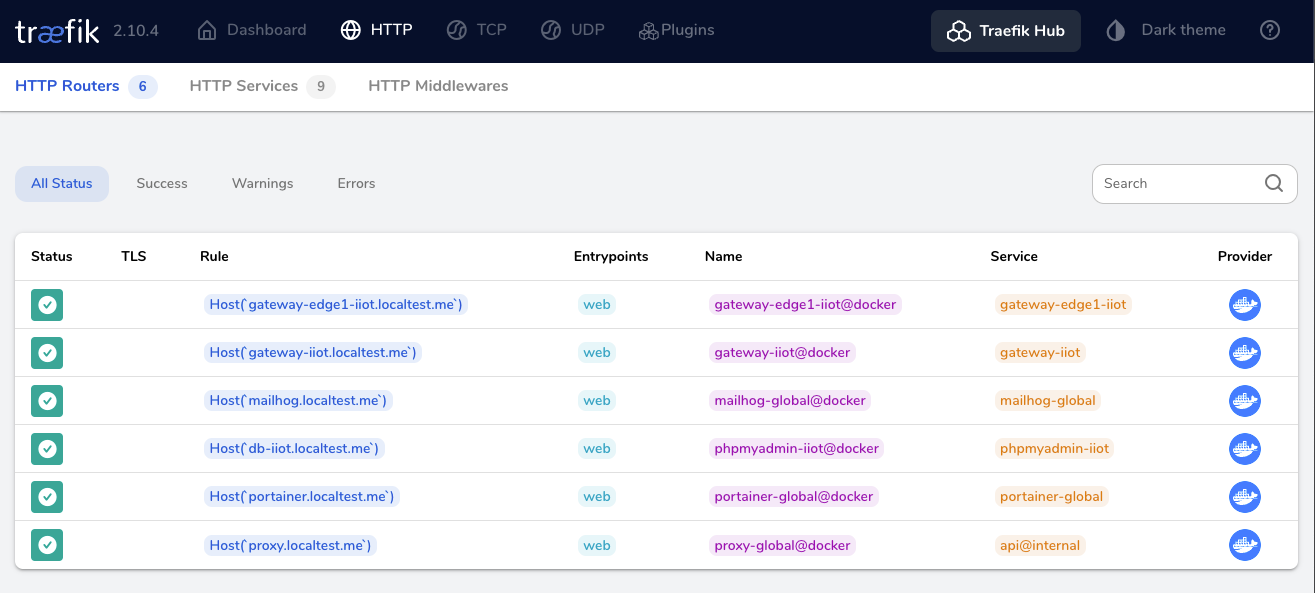

Taking a peek at the Proxy Dashboard should reveal the following HTTP Routers:

Next, check each of the following URLs:

• http://gateway-iiot.localtest.me
• http://gateway-edge1-iiot.localtest.me
• http://db-iiot.localtest.me (login with MySQL user root and password ignition)
